900 Novy Vision Externally Ducted

White / Stainless St

N7831

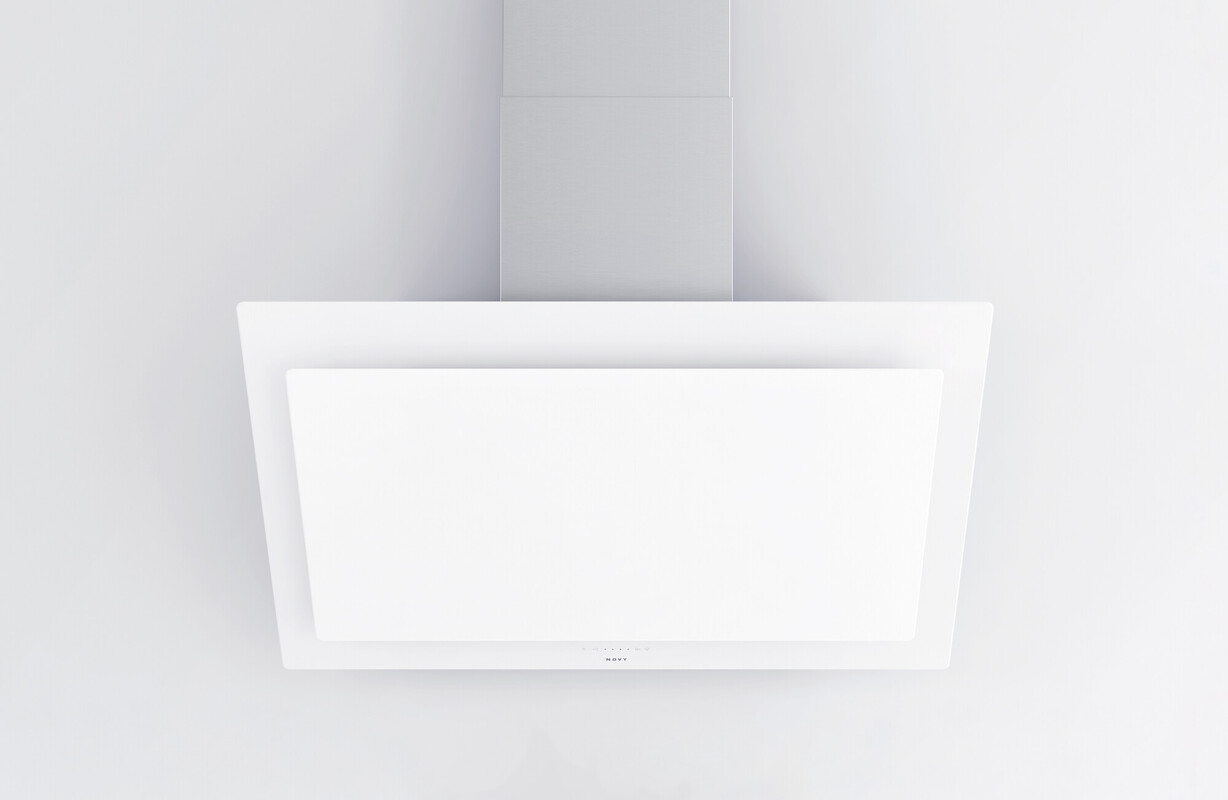

The wall mounted Novy Vision offers a clean, modern look with subtle LED lighting. This model is designed to be externally vented and offers the option to install without a chimney thanks to the exhaust at the back of the hood. A variety of sizes and colour finishes are available for the Novy Vision as well as recirculating models.

Product Features and Specifications

Key Features

Height (Min / Max) mm	517 (Rear Exhaust) / 830 - 1100 (Top Exhaust)
Depth (mm)	426.00
Width (mm)	898
Noise (db)	51
Colour	White / Stainless St
Energy Rating	A+
Number of Speed Settings	3 + Power
Control Method	Touch Control
Remote Control	Optional

Technical Specifications

SKU The unique, machine-readable identifier for a variation.	N7831
Weight (kg)	32.00
Voltage	230
Light Power (W)	4
Maximum Power (W)	305.00
Energy Efficiency Index EEI	42.9
Fluid Dynamic Efficiency Class	A
Fluid Dynamic Efficiency FDE	35.5
Flow Rate at BEP	414.4
Static Pressure at BEP	488
Electric Power Input at BEP	158.1
Time Increase Factor F	0.7
Lighting Efficiency Class	A
Lighting Efficiency LE	35.5
Grease Filtering Efficiency Class	C
Grease Filtering Efficiency GFE	78.1
Width (mm)	898.00
Depth (mm)	426.00
Height with Ceramic Hobs (Min-Max) (mm)	500 - 750
Height with Gas Hobs (Min-Max) (mm)	650 - 750
Functional Lighting Type	LED
Number of Functional Lights	2.00
Effectiveness Of The Hob Light	279
Annual Energy Consumption AEC	45.5
Standard Annual Energy Consumption SAEC	45.5
Nominal electric power input of the lighting system	7
Extracted air flow in setting 1 at working point	245
Extracted air flow in setting 2 at working point	348
Extracted air flow in setting 3 at working point	450
Extracted air flow in setting boost at working point	780
Noise value extracted air setting 1 sound power level	35
Noise value extracted air setting 3 sound power level	51
Noise value extracted air setting boost sound power level	62
Power Consumption in Standby Mode (Ps) (W)	0.37
