1200 Novy Vision Externally Ducted

White / Stainless St

N7841

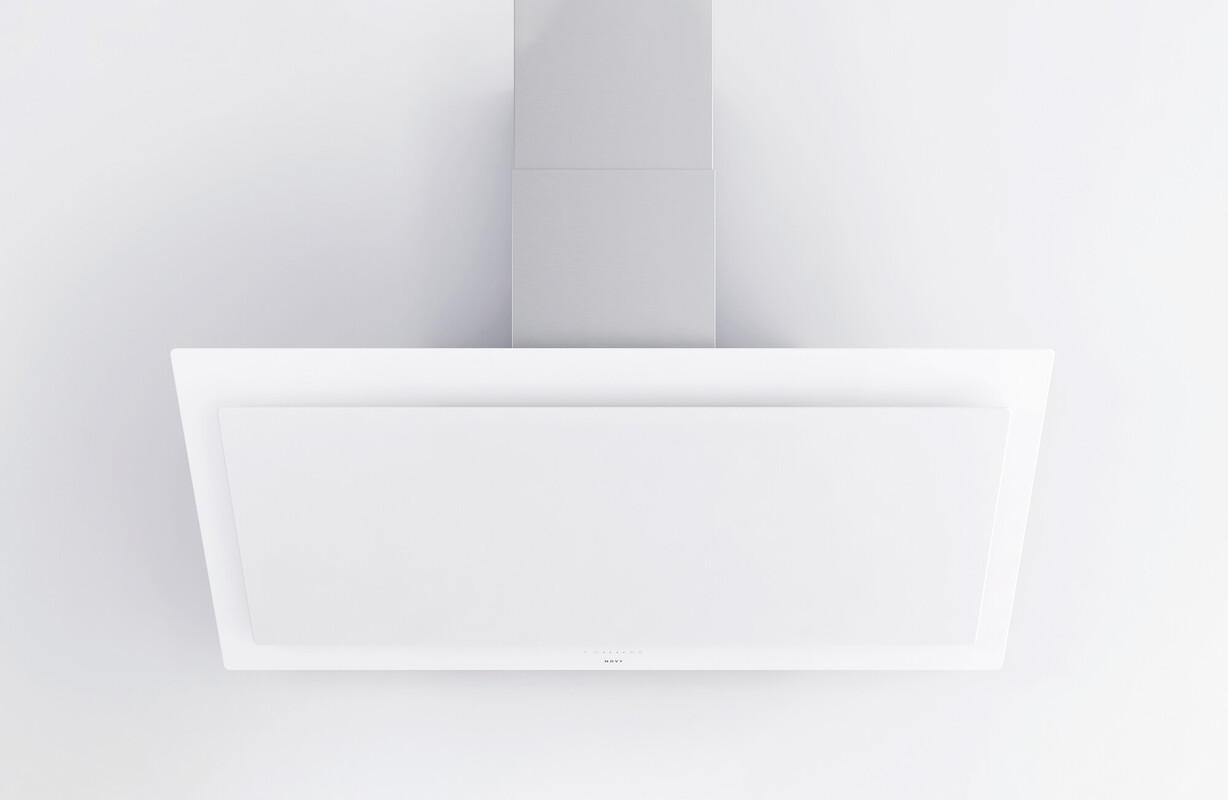

The wall mounted Novy Vision offers a clean, modern look with subtle LED lighting. This model is designed to be externally vented and offers the option to install without a chimney thanks to the exhaust at the back of the hood. A variety of sizes and colour finishes are available for the Novy Vision as well as recirculating models.

Product Features and Specifications

Key Features

Height (Min / Max) mm	517 (Rear Exhaust) / 830 - 1100 (Top Exhaust)
Depth (mm)	429.00
Width (mm)	1198
Noise (db)	52
Colour	White / Stainless St
Energy Rating	A+
Number of Speed Settings	3 + Power
Control Method	Touch Control

Technical Specifications

SKU The unique, machine-readable identifier for a variation.	N7841
Weight (kg)	38.00
Voltage	230
Light Power (W)	4
Maximum Power (W)	325.00
Energy Efficiency Index EEI	43.2
Fluid Dynamic Efficiency Class	A
Fluid Dynamic Efficiency FDE	36.8
Flow Rate at BEP	498.7
Static Pressure at BEP	458
Electric Power Input at BEP	172.5
Time Increase Factor F	0.7
Lighting Efficiency Class	A
Lighting Efficiency LE	36.8
Grease Filtering Efficiency Class	C
Grease Filtering Efficiency GFE	75.9
Width (mm)	1198.00
Depth (mm)	429.00
Height with Ceramic Hobs (Min-Max) (mm)	500 - 750
Height with Gas Hobs (Min-Max) (mm)	650 - 750
Functional Lighting Type	LED
Number of Functional Lights	2.00
Effectiveness Of The Hob Light	280
Annual Energy Consumption AEC	49.3
Standard Annual Energy Consumption SAEC	49.3
Nominal electric power input of the lighting system	6.6
Extracted air flow in setting 1 at working point	239
Extracted air flow in setting 2 at working point	318
Extracted air flow in setting 3 at working point	483
Extracted air flow in setting boost at working point	784
Noise value extracted air setting 1 sound power level	35
Noise value extracted air setting 3 sound power level	52
Noise value extracted air setting boost sound power level	62
Power Consumption in Standby Mode (Ps) (W)	0.29
