750 Novy Vision Externally Ducted
Black / Stainless St

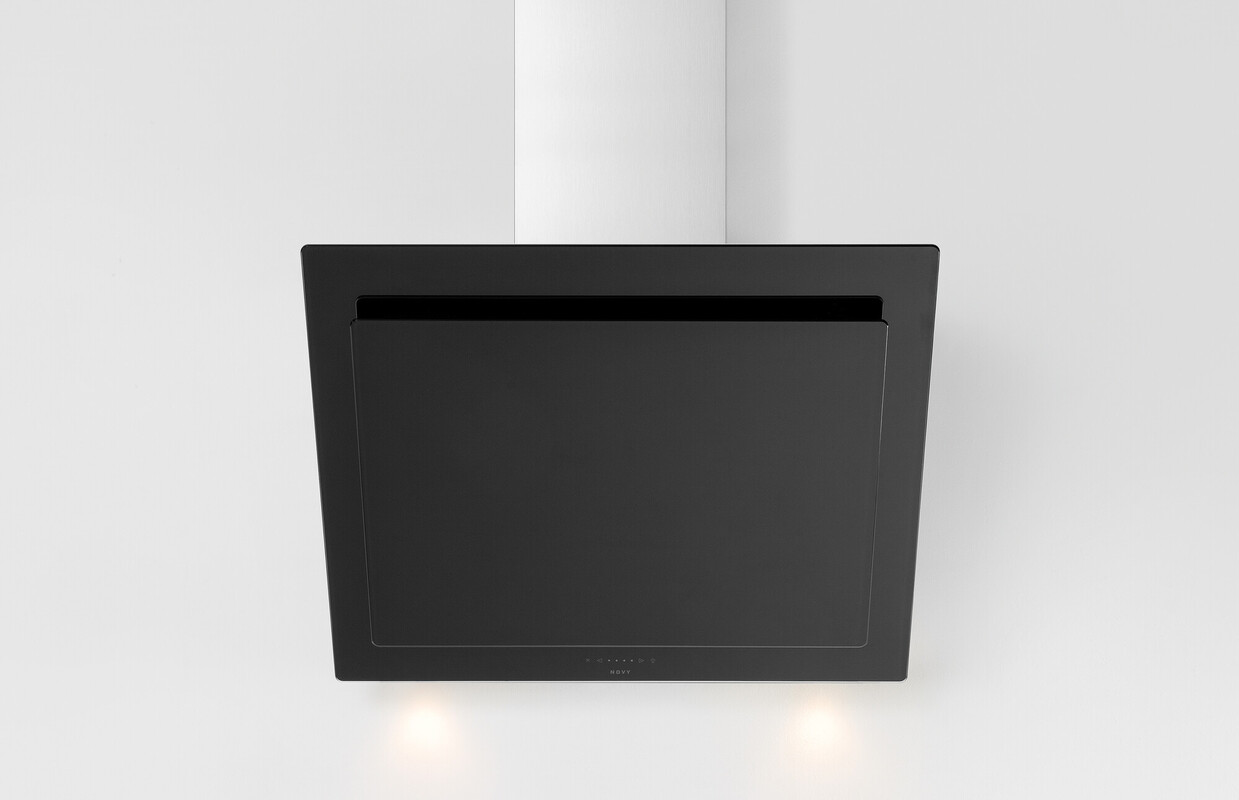

The wall mounted Novy Vision offers a clean, modern look with subtle LED lighting. This model is designed to be externally vented and offers the option to install without a chimney thanks to the exhaust at the back of the hood. A variety of sizes and colour finishes are available for the Novy Vision as well as recirculating models.
Colour
Size
Hood Model
£1,444.00
Add to Basket

Product Features and Specifications

Height (Min / Max) mm
517 (Rear Exhaust) / 830 - 1100 (Top Exhaust)
Depth (mm)
426.00
Width (mm)
748
Noise (db)
51
Colour
Black / Stainless St
Energy Rating
A+
Number of Speed Settings
3 + Power
Control Method
Touch Control
SKU The unique, machine-readable identifier for a variation.
N7850
Weight (kg)
31.00
Voltage
230
Light Power (W)
7
Maximum Power (W)
325.00
Energy Efficiency Index EEI
42.9
Fluid Dynamic Efficiency Class
A
Fluid Dynamic Efficiency FDE
35.8
Flow Rate at BEP
437.1
Static Pressure at BEP
475
Electric Power Input at BEP
161
Time Increase Factor F
0.7
Lighting Efficiency Class
A
Lighting Efficiency LE
35.8
Grease Filtering Efficiency Class
C
Grease Filtering Efficiency GFE
80.6
Width (mm)
748.00
Depth (mm)
426.00
Height with Ceramic Hobs (Min-Max) (mm)
500 - 750
Height with Gas Hobs (Min-Max) (mm)
650 - 750
Functional Lighting Type
LED
Number of Functional Lights
2.00
Effectiveness Of The Hob Light
241
Annual Energy Consumption AEC
46.2
Standard Annual Energy Consumption SAEC
46.2
Nominal electric power input of the lighting system
7
Extracted air flow in setting 1 at working point
248
Extracted air flow in setting 2 at working point
333
Extracted air flow in setting 3 at working point
495
Extracted air flow in setting boost at working point
788
Noise value extracted air setting 1 sound power level
35
Noise value extracted air setting 3 sound power level
51
Noise value extracted air setting boost sound power level
62
Power Consumption in Standby Mode (Ps) (W)
0.29
