600 Novy Pureline Mini Stainless Steel

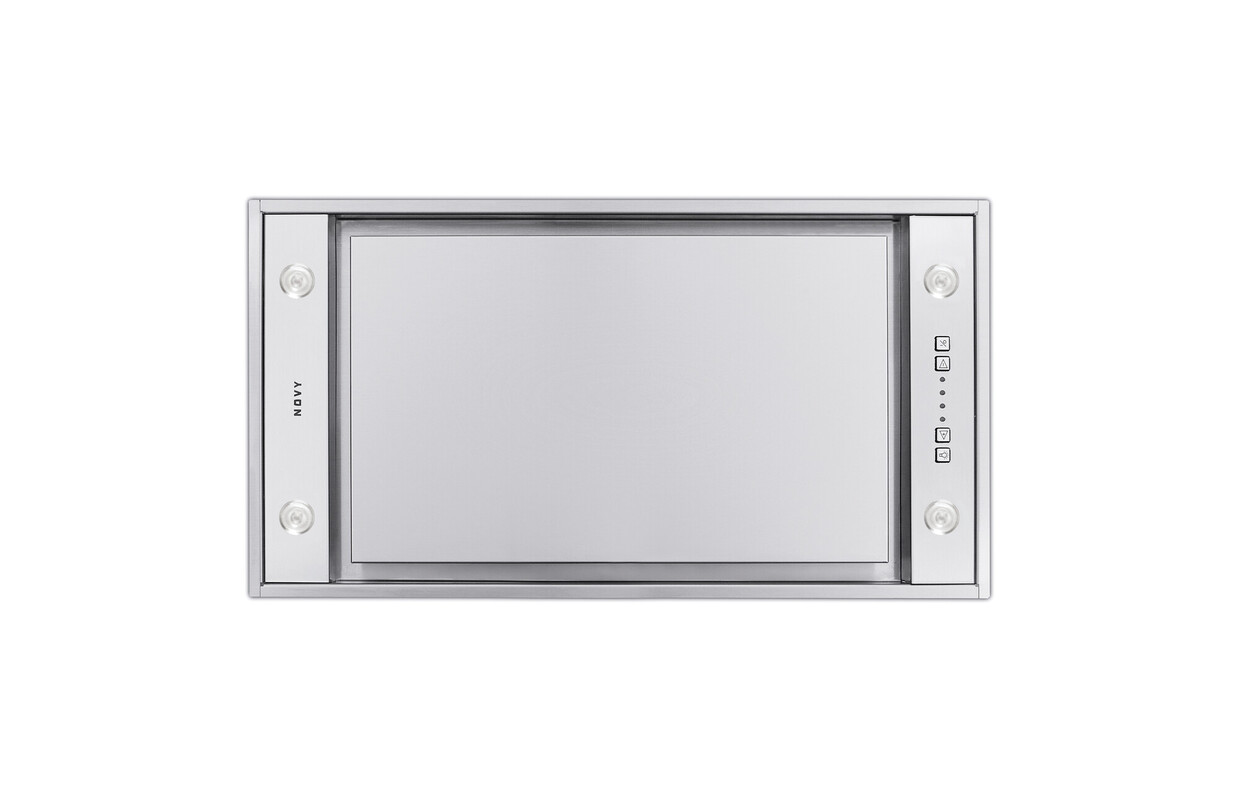

600 Novy Pureline Mini
Stainless Steel
Ideal for smaller range cookers, the Novy Pureline Mini is available in 60cm or 90cm and comes in a choice of a stainless steel, white or black finish. With integrated LED lighting which can be adjusted from warm white to neutral white and dimmed, this built-in hood allows you to control the atmosphere in your kitchen.
This hood can be externally ducted, offering flexible installation of the cubic motor for more placement options. Alternatively you can order the 60cm Novy Recirculation Pureline Mini Kit or a Novy Recirculation box or to make recirculating.
Product Features and Specifications
|
Height (Min / Max) mm
|
330
|
|
Depth (mm)
|
301.00
|
|
Width (mm)
|
560
|
|
Noise (db)
|
54
|
|
Colour
|
Stainless Steel
|
|
Energy Rating
|
A
|
|
Number of Speed Settings
|
3 + Power
|
|
Control Method
|
Push Buttons & Remote Control
|
|
Remote Control
|
Standard
|
|
SKU
The unique, machine-readable identifier for a variation.
|
N810
|
|
Weight (kg)
|
10.00
|
|
Voltage
|
230
|
|
Light Power (W)
|
8
|
|
Maximum Power (W)
|
118.00
|
|
Energy Efficiency Index EEI
|
52.8
|
|
Fluid Dynamic Efficiency Class
|
A
|
|
Fluid Dynamic Efficiency FDE
|
31.8
|
|
Flow Rate at BEP
|
286.1
|
|
Static Pressure at BEP
|
323
|
|
Electric Power Input at BEP
|
80.8
|
|
Time Increase Factor F
|
0.9
|
|
Lighting Efficiency Class
|
A
|
|
Lighting Efficiency LE
|
31.8
|
|
Grease Filtering Efficiency Class
|
C
|
|
Grease Filtering Efficiency GFE
|
81.8
|
|
Width (mm)
|
560.00
|
|
Depth (mm)
|
301.00
|
|
Height with Ceramic Hobs (Min-Max) (mm)
|
600 - 750
|
|
Height with Gas Hobs (Min-Max) (mm)
|
650 - 750
|
|
Functional Lighting Type
|
LED
|
|
Functional Lighting Dimmable
|
Yes
|
|
Number of Functional Lights
|
4.00
|
|
Effectiveness Of The Hob Light
|
662
|
|
Annual Energy Consumption AEC
|
34.9
|
|
Standard Annual Energy Consumption SAEC
|
34.9
|
|
Nominal electric power input of the lighting system
|
13.1
|
|
Extracted air flow in setting 1 at working point
|
205
|
|
Extracted air flow in setting 2 at working point
|
333
|
|
Extracted air flow in setting 3 at working point
|
399
|
|
Extracted air flow in setting boost at working point
|
534
|
|
Noise value extracted air setting 1 sound power level
|
37
|
|
Noise value extracted air setting 3 sound power level
|
54
|
|
Noise value extracted air setting boost sound power level
|
61
|
|
Power Consumption in Standby Mode (Ps) (W)
|
0.25
|
