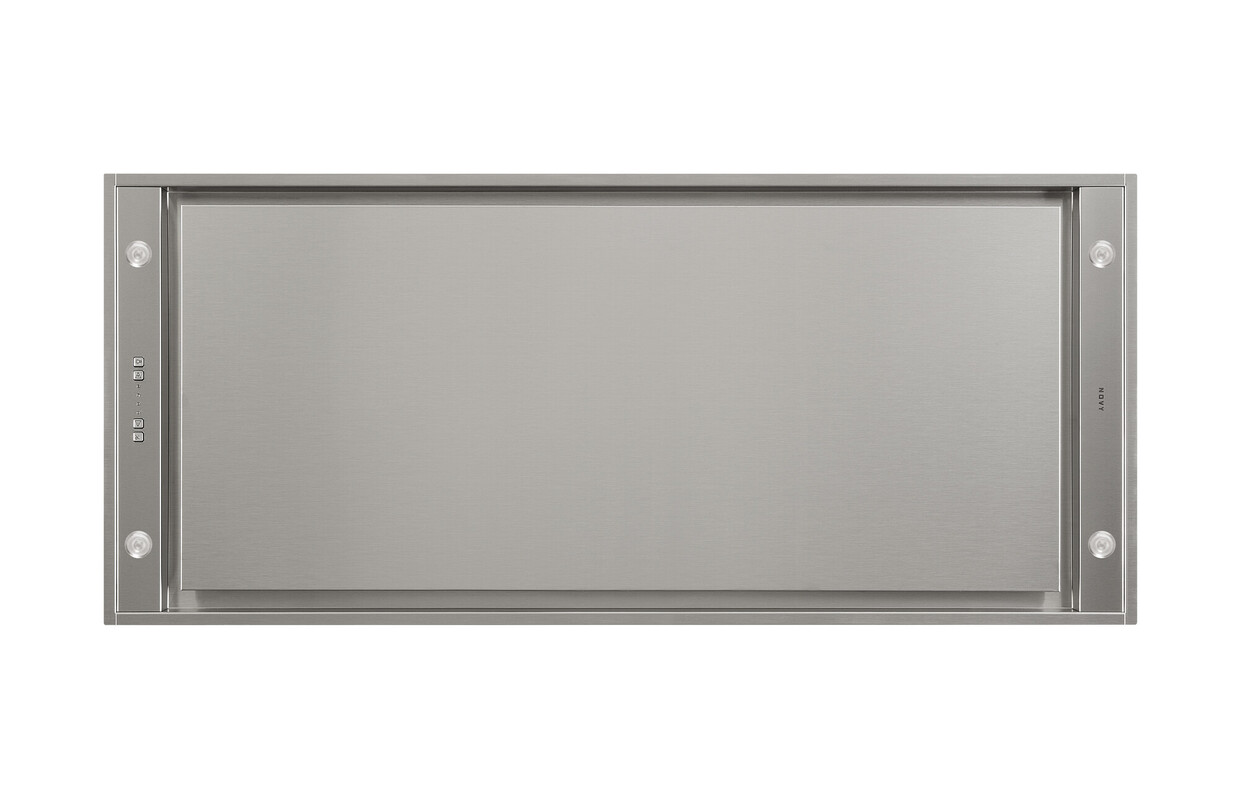

1200 Novy Pureline with lighting Stainless Steel
1200 Novy Pureline with lighting
Stainless Steel
The Novy Pureline with lighting ceiling hood offers maximum efficiency whilst remaining extremely quiet. These hoods are available in a white or stainless steel finish and offer integrated dimmable LED lighting which can be adjusted from warm white to neutral white.
Flexible installation is a possibility thanks to an integrated cubic motor which can be rotated in all directions for external ducting. Recirculation option is available when purchased with a Novy Recirculation box.
Product Features and Specifications
|
Height (Min / Max) mm
|
319
|
|
Depth (mm)
|
508.00
|
|
Width (mm)
|
1168
|
|
Noise (db)
|
55
|
|
Colour
|
Stainless Steel
|
|
Energy Rating
|
A+
|
|
Number of Speed Settings
|
3 + Power
|
|
Control Method
|
Push Buttons & Remote Control
|
|
Remote Control
|
Standard
|
|
SKU
The unique, machine-readable identifier for a variation.
|
N6840
|
|
Weight (kg)
|
25.00
|
|
Voltage
|
230
|
|
Light Power (W)
|
8
|
|
Maximum Power (W)
|
118.00
|
|
Energy Efficiency Index EEI
|
44.3
|
|
Fluid Dynamic Efficiency Class
|
C
|
|
Fluid Dynamic Efficiency FDE
|
35.1
|
|
Flow Rate at BEP
|
344.3
|
|
Static Pressure at BEP
|
354
|
|
Electric Power Input at BEP
|
96.5
|
|
Time Increase Factor F
|
0.7
|
|
Lighting Efficiency Class
|
C
|
|
Lighting Efficiency LE
|
35.1
|
|
Grease Filtering Efficiency Class
|
D
|
|
Grease Filtering Efficiency GFE
|
67.7
|
|
Width (mm)
|
1168.00
|
|
Depth (mm)
|
508.00
|
|
Height with Ceramic Hobs (Min-Max) (mm)
|
600 - 1600
|
|
Height with Gas Hobs (Min-Max) (mm)
|
650 - 1600
|
|
Functional Lighting Type
|
LED
|
|
Functional Lighting Dimmable
|
Yes
|
|
Number of Functional Lights
|
4.00
|
|
Effectiveness Of The Hob Light
|
200
|
|
Annual Energy Consumption AEC
|
33.1
|
|
Standard Annual Energy Consumption SAEC
|
33.1
|
|
Nominal electric power input of the lighting system
|
11.5
|
|
Extracted air flow in setting 1 at working point
|
246
|
|
Extracted air flow in setting 2 at working point
|
407
|
|
Extracted air flow in setting 3 at working point
|
535
|
|
Extracted air flow in setting boost at working point
|
615
|
|
Noise value extracted air setting 1 sound power level
|
35
|
|
Noise value extracted air setting 3 sound power level
|
55
|
|
Noise value extracted air setting boost sound power level
|
58
|
|
Power Consumption in Standby Mode (Ps) (W)
|
0.25
|
