1000 Novy Flatline Island Hood Stainless Steel

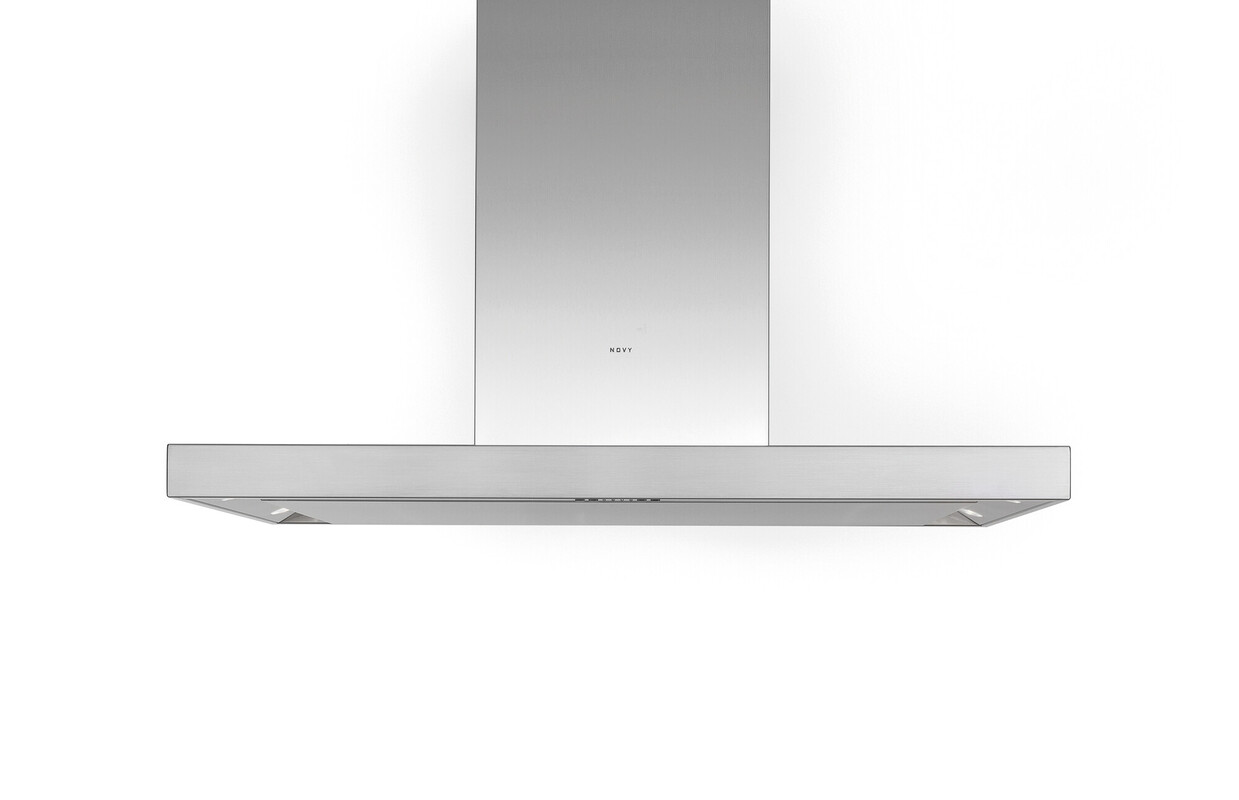

1000 Novy Flatline Island Hood
Stainless Steel
Designed for situation above kitchen islands, the Novy Flatline Island Hood is a stylish feature for your kitchen offering slim lines, seamless finish and subtle LED lighting. This cooker hood offers a range of 3 extraction setting plus an additional power boost mood so you can control your cooking environment.
This hood is externally vented as standard and or may be purchased in conjunction with the Novy Recirculation Flatline Island Hood Kit for a recirculation option.
Product Features and Specifications
|
Height (Min / Max) mm
|
563 - 730 / Recirc. 679 - 860
|
|
Depth (mm)
|
700.00
|
|
Width (mm)
|
1000
|
|
Noise (db)
|
57
|
|
Colour
|
Stainless Steel
|
|
Energy Rating
|
A
|
|
Number of Speed Settings
|
3 + Power
|
|
Control Method
|
Push Buttons
|
|
Remote Control
|
Optional
|
|
SKU
The unique, machine-readable identifier for a variation.
|
N7650
|
|
Weight (kg)
|
38.00
|
|
Voltage
|
230
|
|
Light Power (W)
|
8
|
|
Maximum Power (W)
|
308.00
|
|
Energy Efficiency Index EEI
|
50.8
|
|
Fluid Dynamic Efficiency Class
|
A
|
|
Fluid Dynamic Efficiency FDE
|
32.5
|
|
Flow Rate at BEP
|
433.5
|
|
Static Pressure at BEP
|
440
|
|
Electric Power Input at BEP
|
163.2
|
|
Time Increase Factor F
|
0.8
|
|
Lighting Efficiency Class
|
A
|
|
Lighting Efficiency LE
|
32.5
|
|
Grease Filtering Efficiency Class
|
F
|
|
Grease Filtering Efficiency GFE
|
48.8
|
|
Width (mm)
|
1000.00
|
|
Depth (mm)
|
700.00
|
|
Height with Ceramic Hobs (Min-Max) (mm)
|
600 - 850
|
|
Height with Gas Hobs (Min-Max) (mm)
|
650 - 850
|
|
Functional Lighting Type
|
LED
|
|
Functional Lighting Dimmable
|
Yes
|
|
Number of Functional Lights
|
4.00
|
|
Effectiveness Of The Hob Light
|
529
|
|
Annual Energy Consumption AEC
|
57
|
|
Standard Annual Energy Consumption SAEC
|
57
|
|
Nominal electric power input of the lighting system
|
12.7
|
|
Extracted air flow in setting 1 at working point
|
216
|
|
Extracted air flow in setting 2 at working point
|
296
|
|
Extracted air flow in setting 3 at working point
|
451
|
|
Extracted air flow in setting boost at working point
|
743
|
|
Noise value extracted air setting 1 sound power level
|
47
|
|
Noise value extracted air setting 3 sound power level
|
57
|
|
Noise value extracted air setting boost sound power level
|
64
|
|
Power Consumption in Standby Mode (Ps) (W)
|
0.25
|
