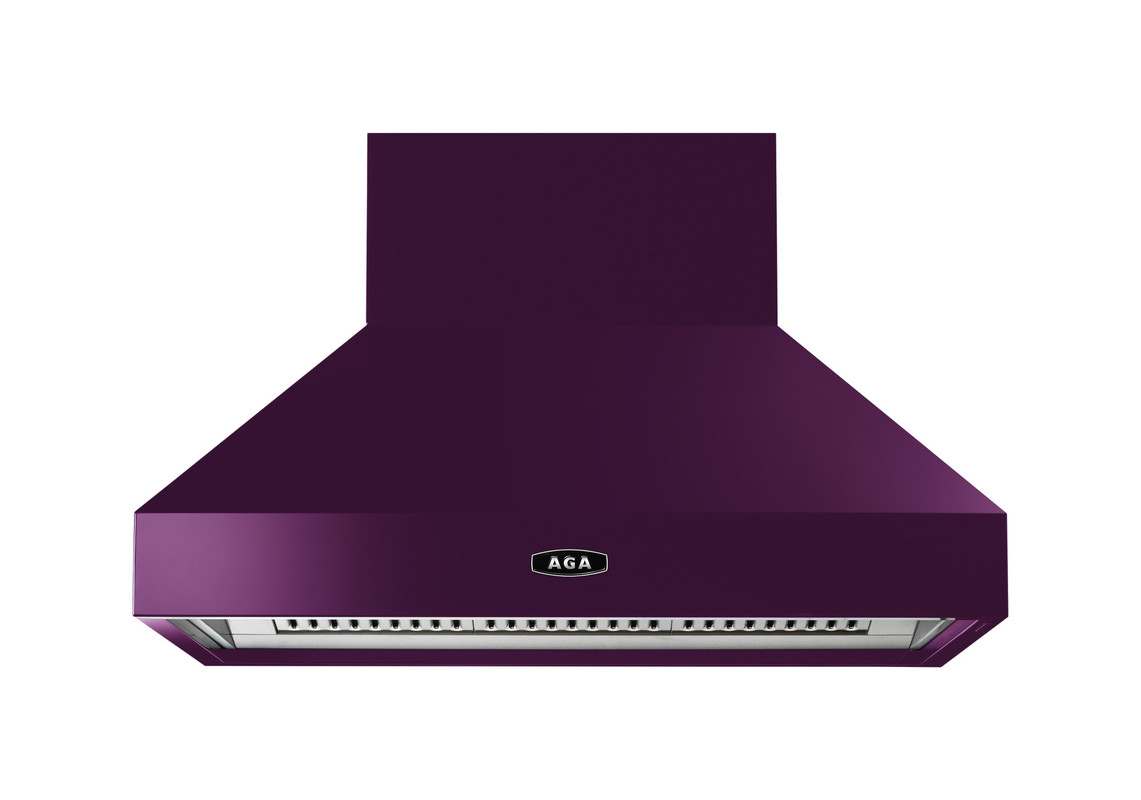

1090 AGA Pitch Hood Aubergine
1090 AGA Pitch Hood
Aubergine
With a stylish pitch design and 110cm wide, this hood has been designed to complement your AGA cooker in both look and performance, whilst creating the ideal environment for cooking. This hood works to rapidly clear your kitchen of steam, fumes and odours whilst cooking and offers a useful remote control to control the speed of extraction.
Product Features and Specifications
Height (Min / Max) mm
|
680 / 965
|
Depth (mm)
|
650.00
|
Width (mm)
|
1090
|
Noise (db)
|
61.6
|
Colour
|
Aubergine
|
Energy Rating
|
A
|
Number of Speed Settings
|
3
|
SKU
The unique, machine-readable identifier for a variation.
|
AGA-HOOD-1090 PH-AUB
|
Weight (kg)
|
35.00
|
Light Power (W)
|
2.6
|
Filter
|
Baffle
|
Energy Efficiency Index EEI
|
49.2
|
Fluid Dynamic Efficiency Class
|
A
|
Fluid Dynamic Efficiency FDE
|
32.1
|
Flow Rate at BEP
|
481.2
|
Static Pressure at BEP
|
439
|
Electric Power Input at BEP
|
182.6
|
Time Increase Factor F
|
0.8
|
Lighting Efficiency Class
|
A
|
Lighting Efficiency LE
|
31.7
|
Grease Filtering Efficiency Class
|
B
|
Grease Filtering Efficiency GFE
|
89.5
|
Width (mm)
|
1090.00
|
Depth (mm)
|
650.00
|
Annual Energy Consumption AEC
|
59
|
Standard Annual Energy Consumption SAEC
|
120.02
|
Nominal electric power input of the lighting system
|
7.8
|
Off mode
|
0.27
|
Extracted air flow in setting 1 free blowing
|
244.1
|
Extracted air flow in setting 2 at working point
|
250.0
|
Extracted air flow in setting 2 free blowing
|
378.0
|
Extracted air flow in setting 3 free blowing
|
511.0
|
extracted air flow in setting 4 at working point
|
525
|
Extracted air flow in setting boost free blowing
|
775.3
|
Noise value extracted air setting 1 sound power level
|
795.8
|
Noise value extracted air setting 2 sound power level
|
45.3
|
Noise value extracted air setting 3 sound power level
|
53.5
|
noise value extracted air setting 4 sound power level
|
61.6
|
Odour dispersion time
|
70.5
|
