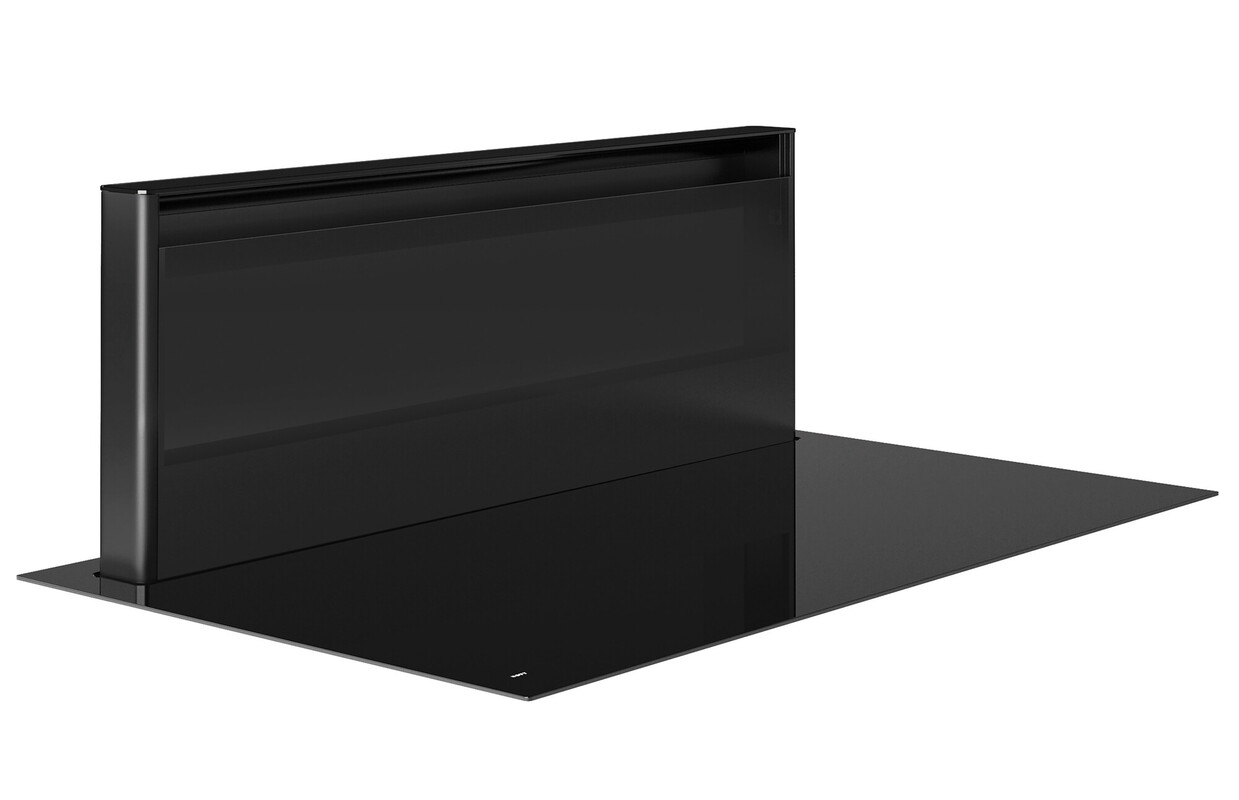

90 Novy Panorama Power 3 Zone
Vented Induction Hob

Maximise precious kitchen space with the Novy Panorama Power 3-Zone Vented Induction Hob without compromising the aesthetic of your kitchen. A specialised ventilation tower rapidly captures cooking fumes directly at the source and can be fixed at a 10cm, 20cm or 30cm height. This can be adjusted whilst cooking to meet the height of your pots and pans, and you can control this directly from the Novy Connect app. Designed with three induction zones and a range of features including 9 power levels, a useful boost setting, and a helpful timer, the Novy Panorama Power offers excellent cooking flexibility. In addition, flex zone technology enables manual bridging function of induction zones. This vented hob can be externally ducted or recirculating with an additional kit.

Key Features

Width (mm)	818
Height (mm)	770
Depth (mm)	165
Weight (kg)	50
Fuel Type	Electric
Hob Fuel Type	Induction
Number of Induction Zones	3 Zone
Shape of Induction Zones	1 x Circular + 2 x Rectangular Zones
Induction Bridging Feature	Yes
Energy Rating	B
Annual Energy Consumption AEC	50.5
Maximum Power (W)	6980
Voltage	230
Colour	Black
Control Type	Electronic

Technical Specifications

Hob Zone 1 Power (kW)	2.3 (3)
Hob Zone 1 Fuel	Induction
Hob Zone 2 Power (kW)	2.1 (3.7)
Hob Zone 2 Fuel	Induction
Hob Zone 3 Power (kW)	1.6 (1.85)
Hob Zone 3 Fuel	Induction
Energy Efficiency Index EEI	59.8
Fluid Dynamic Efficiency FDE	24.8
Grease Filtering Efficiency Class	C
Grease Filtering Efficiency GFE	77.7
Power Consumption in Standby Mode (Ps) (W)	0.7
Number of Speed Settings	5 + 3 Intensive
Display Type	LED
Display Colour	White
CE Marked	Yes
SKU The unique, machine-readable identifier for a variation.	N1831
